Element formworks For reinforced and/or prestressed concrete parts
Formwork with manual and hydrauilic adjustment for columns, beams, trusses, piles
Bar type parts are used in a variety of ways in modular precast construction systems. As supports with or without bracket cantilevers, girders, purlins, beams and piles in a wide variety of cross-sections and dimensions for residential, office, commercial and industrial construction.
Pre-stressed and/or reinforced. Industrially precisely manufactured to fit, precast bar parts shorten construction times and reduce the need for personnel on the construction site.

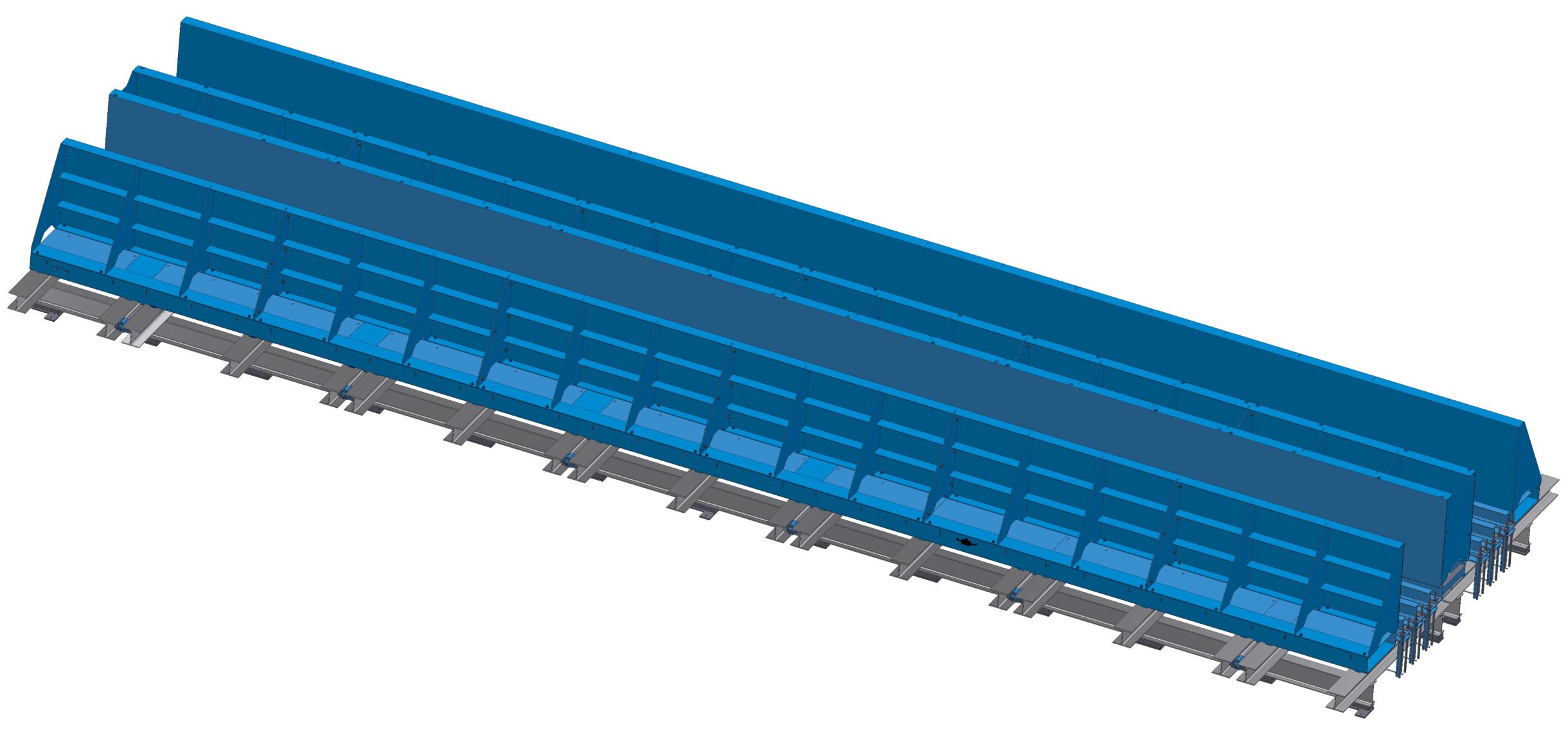

Single- or twin type mould Perfect flexibility thanks to modular design
Both the centre and side frames are fully adjustable. For the production of slackly reinforced or prestressed concrete elements with a maximum width / height of 80 cm and various lengths. Cantilevers can be casted with corbel box modules for brackets. The bar type element formwork consists of a central formwork frame and two adjustable side formwork frames, which are installed on a rigid production platform. The side frames are equipped with rollers for easy movement. Simple installation of the corbel box modules for brackets. Depending on the application, all frames as well as the floor can be covered with wooden or steel formwork elements.
Flexible in use
- For reinforced and/or prestressed concrete parts
- Cross-section up to 80/80 cm and various lengths
- maxtension prestressing equipment as supplement for the production of prestressed bar parts
- Hydraulic or manual opening and closing
- Individual adjustment of the formwork, corbel box modules for brackets
- Height-adjustable bottom
BASIC MODULES
- Side frame
- Centre frame
- Base frame
- Hydraulics
Extension modules
- Consoles
- Foundation footer
- Set Tops
- Multi or mono frequency vibration
Technical Data
| Min. cross section (standard) | 20 x 20 cm |
| Max. cross section (standard) | 80 x 80 cm |
| Total length | variable |
| Prestressing | available |
